VDMA 24994:2024-08 certification means a product has been tested to meet the highest European standards for safely containing lithium-ion batteries and resisting fire. When it comes to battery safety, peace of mind matters.
Choose the Phoenix Battery Commander PRO BS1946K for Lithium-ion battery charging
VDMA 24994:2024-08 Tested and Certified
Large volume Lithium-ion battery storage & charging
Storage and charging for up to 19000Wh of batteries
Single battery capacity - 4750Wh
Robust Safe condtruction
Choice of locking - key, electronic or fingerprint
Internal temperature monitor as standard
Reinforced and insulated shelving
Full electronic fire alarm and monitoring system
Can be linked to your building fire alarm system

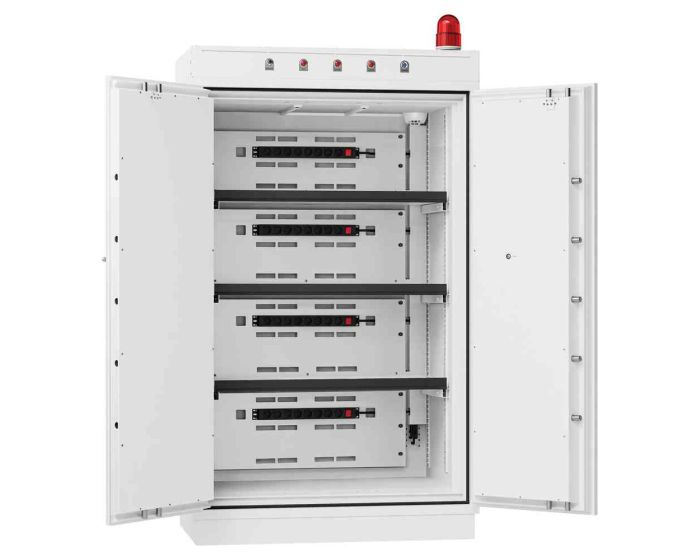

The large VDMA Certified Phoenix Battery Commander PRO BS1946 is designed for large volume Lithium-ion battery storage and charging. This Phoenix Battery Commander PRO Cabinet has high security auto closing twin doors with a choice of 3 locking options. Please read the full specification below or open or download the PDF info sheet available under the "Add to Basket" buttton.
External Dimensions
External Dimensions: Height: 1910mm, Width: 1125mm, Depth: 710mm EXT H 1910 x W 1125 x D 710 mm
Internal Dimensions
Internal Dimensions: Height: 1505mm, Width: 945mm, Depth: 400mm INT H 1505 x W 945 x D 400 mm
The large twin door Phoenix Battery Commander PRO BS1946K Key Locking Charging Cabinet is tested and certified to VDMA 24994:2024-08 and is designed to both charge and secure Lithium-ion batteries securely and protect your business from the serious effects of Lithium-ion battery fires. It is suitable for both the storage and charging of all Lithium-ion batteries up to 25kg in weight. Check the PDF data sheet for full details.
Security features of the Phoenix Battery Commander PRO BS1946K Charging Cabinet | Key
FIRE PROTECTION - Inside to Outside - Single battery Capacity 4759Wh - Max Battery Capacity 190000Wh
FIRE PROTECTION - Outside to Inside - tested
TESTED & CERTIFIED - VDMA 24994:2024-08
LOCKING METHOD - High security key locking with 2 keys supplied
Safety features of the Phoenix Battery Commander PRO BS1946K Charging Cabinet | Key
INTERNAL TEMPERATURE MONITOR - For safety the cabinet is fitted with an external temperature warning lamp and humifity monitor
DOOR ALARM - Sensors prevent the doors being left open- charging will cut out and buzzers will send alarm signal
FIRE ALARM CONNECTION - The integral Control unit can be connected to the building fire alarm system for extra safety
SIREN & STROBE - A Siren & Strobe light is triggered in the event of overheating or thermal runaway
WARNING LABELS - Fitted with Warning labels to ISO 3864 and ISO 7010 & European Directive 92/58/EEC
MULTIPOINT LOCKING - Advanced locking system will seal and keep the doors closed in the event of a battery explosion
CONSTRUCTION - Double wall construction with Styronite F insulation for maximum protection against internal explosion
PLINTH - Clip-on plinth removal allows easy mobility using fork-lift if the cabinet needs removing from the building in an emergency situation
TWO YEAR GUARANTEE - Two year materials and labour warranty
Organisations that use the Phoenix Battery Commander PRO BS1946K Charging Cabinet | Key
Manufacturers of Lithium-ion batteries for Bikes, Scooters, Drones, Fork Lift trucks, Power tools
Distributors and wholesalers of Lithium batteries for Drones, Cycles, Scooters, Laptops, Mobile phones, Tablets,
Any business that needs to utilise and charge Lithium-ion batteries
Installation of your Phoenix Battery Commander PRO BS1946K Charging Cabinet | Key
Safe Options offers 2 delivery service options:
Pallet delivery to outside your company entrance - the cost is included foir the UK mainland
Optional delivery and position by our fully trained engineers to any ground floor location or via a suitable lift to another floor at extra cost
As with all heavy safes our delivery and position service requires close parking, clear access, no stairs or via a goods/passenger lift sufficiently robust to accept the weight.
Details
Details
Manufacturer Part #
BS1946K
Brand
Phoenix Safes
Brand Range
Phoenix Safes - Battery Safes
Dispatch Mon-Fri
N/A - Internals Fitted to Order
Delivery
Delivery: 1-2 weeks1-2 weeks
Weight
Weight: 610.00 kg (96.1 stone)610.00 kg (96.1 stone)
Warranty
Warranty: 2 years2 years
Volume (litres)
Volume: 569.00 ltrs569.00 ltrs
Total Battery Capacity (Wh)
Battery Capacity 22,500.00 Wh22,500.00 Wh
Included 13A Power Sockets
40.00
Fire Resistance For
Lithium-ion Batteries, Paper Documents
Inside to Outside Fire Protection
Inside to Outside Fire Resistance UnlimitedUnlimited
Outside to Inside Fire Protection
Outside to Inside Fire Resistance 120 minutes120 minutes
Lock Type
Key LockKey
Single or Double Door
Double Door
Supplied Safe Shelves
4 Adjustable Shelves
Fixing Methods
Free Standing
Fire Testing Standard
EN14470-1 Part 1, VDMA 24994:2024-08 Certified
Security Testing Standard
Secured by Design Police Preferred Specification
Lock Testing Standard
Not Independently Tested
Condition
New
