Need a Eurograde High Security Safe plus the Ultimate in Fire and Water protection for all Tape, Digital Media and Paper Data? Select the Phoenix DS4653K Millennium Duplex Data Fire Resistant and Security Cabinet with Key locking to protect all magnetic, tape, plastic and digital media from fire and theft for up to 120 minutes and tested to the world class fire test - EN-1047-1. Plus Eurograde 1 Tested Burglary protection for up to £10,000 Cash or £100,000 of valuables - certified to EN1143-1. Only Fireproof Data Safes will protect magnetic back up tapes, negatives, film from the effects of fire and heat. Standard fire safes will only protect paper. This Phoenix Millennium Duplex Data safe will keep the temperature down below 52º C for up to 2 hours. above this temperature plastic tape begins to melt.
External Dimensions
H 1456 x W 886 x D 798 mm
Internal Dimensions
H 1200 x W 665 x D 524 mm
Supplied Safe Shelves
3 Adjustable Shelves
Weight (kg)
Weight 755Kg755Kg
Volume (litres)
Volume 418 litres418L
Warranty Period
2 years, After Fire Free Replacement + 2 Years
Fire Protection Time (mins)
Fire Resistance 120 mins120min
Fire Resistance For
Paper Documents, Digital Media, Tape Data, Negatives

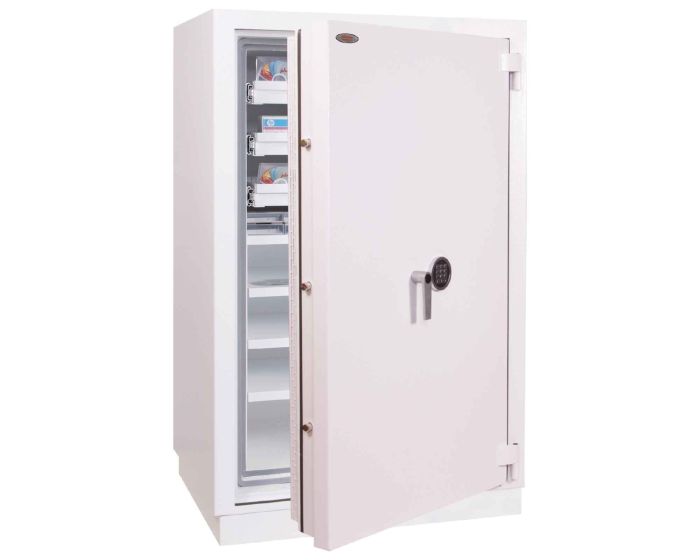

The Phoenix Millennium Duplex DS4653K is a Large Premium Key Locking Fireproof and Water Resistant Data Safe that offers security and fire protection for Plastic Tape Computer media - it has been fully tested to EN1047-1 S120DIS that will protect your computer backup tapes for up to 120 minutes and tape media, photographic negatives, film and digital media such as CD's, DVD's and USB memory sticks from the effects of a fire in the main safe for up to 120 minutes as well. This Fire Data Safe is suitable for use in Government, MOD, NHS, Educational, Industrial or Business organisations.
Features of the Phoenix Millennium Duplex DS4653K Key Locking Fire Safe for Tape and Digital Media
Tested to EN1047-1 120 DIS - protection of Computer Back-Up Tapes
Ultimate Fire security for Photographic Negatives, Film and Microfiche
Prrotection of Digital media - DVD, USB Memory sticks, Hard drives
Drop Test - Fire and impact tested - dropped 9.1metres
Water resistant - airtight water resistant seals
The EN1047-1 test mirrors the fall within a burning building from 1 floor to the one below
Free replacement in the event of a fire
Burglary Protection - Certified to Eurograde 1 EN1143-1
Supplied with 3 adjustable height shelves and 3 media drawers
Up to 8 Media Drawers can be fitted (3 supplied) if the shelves are removed
Media Drawer dimensions - 65Hx612Wx511D mm
Colour - RAL7035 Light Grey
Tape and Media Capacity of the Phoenix Millennium Duplex DS4653K Key Locking Fire Safe
Total Capacity 418 Litres
LTO Tapes - 100 per drawer - Using 7 drawers total capacity - 800
DAT Tapes - 248 per drawer - Using 7 drawers total capacity - 1984
DLT Tapes - 67 per drawer - Using 7 drawers total capacity - 536
CD-ROM 10mm Case - 357 per drawer - Using 7 drawers total capacity - 2856
Uses for the Phoenix Millennium Duplex DS4653K Key Locking Fire Safe
Designed to protect Tape Media, Negatives, Microfiche and any Plastic and Digital Media
The internal temperature of the fire safe will not rise above 52° C for up to 120 minutes
Above 52° C plastic media such as Tapes and other plastic media will be damaged
Protect Back Up Tapes, Digital Media - CD,DVD, USB drives, Video Tape, Microfiche and Negatives
Paper documents can also be protected within this safe
Digital Electronic Lock allows multi-user access without need of multiple keys issued
Details
Details
Manufacturer Part #
DS4653K
Product Range
Phoenix Safes - DS4650 - Millennium Duplex
For Dispatch Today (Mon to Fri)
N/A - Made to Order
Usual Delivery Time
8-10 business weeks
Weight (kg)
Weight 755.00 Kg755.00 Kg
Warranty Period
2 years, After Fire Free Replacement + 2 Years
Volume (litres)
Volume 418.00 litres418.00 L
Fire Resistance For
Paper Documents, Digital Media, Tape Data, Negatives
Fire Protection Time (mins)
Fire Resistance 120 mins120min
Water Protection
Water Resistant
Security Rating
Silver Security
Insurance Limit - Cash / Value
Grade 1 - £10k / £100k
Locking Type
Key Lock
Supplied Safe Shelves
3 Adjustable Shelves
Supplied Safe Drawers
3 Pull Out Media Drawers
Safe Key Hooks
None
Fixing Methods
Base Fixing
Fire Testing Standard
EN1047-1 - Fire Protection
Security Testing Standard
EN1143-1 Eurograde Security
Lock Testing Standard
VdS Class 1
CD/DVD 10mm Case
2856
DAT 4mm Tapes
1984
DLT Tapes
536
LTO Tapes
536
Condition
New
